Center Section of the C4 Corvette

1984 - 1996 Door Hardware

JC PT #	Description	JC PT #	Description
C4CD701	84-85 Harness, RH	C4CD737b	84-95 Locator Guide Pin
C4CD701a	86-87 Harness, RH	C4CD738	84-95 Seal Guide Pin Locator - RH
C4CD701b	1988 Harness, RH	C4CD738a	84-95 Seal ASM Guide Pin Locator - RH
C4CD701c	84-85 Harness, LH	C4CD738b	84-95 Seal Guide Pin Locator - LH
C4CD701d	86-87 Harness, LH	C4CD738c	84-95 Seal ASM Guide Pin Locator - LH
C4CD701e	1988 Harness, LH	C4CD739	84-95 Reinforcement Lock
C4CD702	84-95 Gasket Lock Cyl.	C4CD740	84-95 Bolt HFH
C4CD703	84-86 Key Bnlk	C4CD741	84-95 Rod Lock R/Cont Lock RH
C4CD703a	87-89 Key	C4CD741a	84-95 Rod ASM-Lock R/Cont Lock LH
C4CD704	84-89 Nut-Hex Window	C4CD742	84-95 Rod Lock I/S Handle - RH
C4CD705	84-95 Guilde Stabilizer Window Gls-RH	C4CD742a	84-95 Rod Lock I/S Handle - LH
C4CD705a	84-95 Guilde Stabilizer Window Gls-LH	C4CD743	84-87 Theft Deterent Switch - RH
C4CD706	84-95 Bolt Window Glass Stab Gde	C4CD743a	84-87Theft Deterent Switch - LH
C4CD707	84-95 Handle O/S RH	C4CD744	84-85 Switch Comp. Lid Release
C4CD707a	84-95 Handle O/S LH	C4CD744a	86-87 Switch Comp. Lid Release
C4CD707b	84-95 Pawl Lock R/L Same	C4CD744b	88-89 Switch Comp. Lid Release
C4CD708	86-88 Cap Lock Case	C4CD745	84-95 Guide Lock I/S Handle Rod
C4CD709	84-95 Bolt-Hex	C4CD746	84-87 Knob I/S LH or RH
C4CD710	84-95 Bracket Pwr. Window Wrg. Harness	C4CD746a	88-89 Knob I/S LH or RH
C4CD711	84-95 Nut Flange Stamp Seal	C4CD747	1984 Handle I/S LH or RH
C4CD712	84-95 Rod Lock O/S Handle	C4CD747a	84-89 Handle I/S LH or RH
C4CD713	85-89 Retainer/Holds Rod o Hdl. RH	C4CD748	84-95 Insert Frt. Tr. Panel
C4CD713a	85-89 Retainer/Holds Rod o Hdl. LH	C4CD749	84-95 Clip I/S Handle
C4CD714	84-96 Connector/Holds Rod to Lock	C4CD750	84-86 Insulator
C4CD715	84-95 Rod Assembly - RH	C4CD750a	84-95 Insulator
C4CD715a	84-95 Rod Assembly - LH	C4CD751	84-95 Screw Hex Tap
C4CD716	87-88 Clip Door Lock Switch	C4CD752	84-95 Plate Accessory Mt-RH
C4CD717	87-88 Clip Spring Lock Rem. Lever	C4CD752a	84-95 Plate Accessory Mt-LH
C4CD718	87-88 Spring O/S Handle	C4CD753	86-89 Insulator Window Glass
C4CD719	87-88 Spring Lock Over Ctr. RH	C4CD753a	84-85 Insulator Window Glass
C4CD719a	87-88 Spring Lock Over Ctr. LH	C4CD754	84-95 Seal Polyurethene
C4CD720	84-95 Pin ASMRH or LH/Coupe	C4CD755	84-95 Nut-Plastic

C4CD720a	84-95 Pin ASMRH or LH/Conv.	C4CD756	84-95Cover Door Speaker Opg
C4CD721	84-95 Screw Pan Head Torx	C4CD757	84-95 Hinge Assembly Lower R/L same
C4CD722	84-95 Nut Hex	C4CD758	84-95 Seal Jamb Switch
C4CD723	84-88 Lock Assembly/RH	C4CD759	84-95 Pin Hinge Upper & Lower
C4CD723a	1989 Lock/RH	C4CD760	84-95 Switch Assembly Dr Ajar (Pir Post)
C4CD723b	84-88 Lock/LH	C4CD761	84-95 Screw, Hex
C4CD723c	1989 Lock/LH	C4CD762	84-95 Bolt, Hex
C4CD724	84-87 Cushion Window Glas/Anti Rattle	C4CD763	84-95 Hinge Assembly Upper R/L same
C4CD725	84-95 Retainer Ajar Indicator Switch	C4CD764	84-95 Bushing Hinge Upper/Lower
C4CD726	1984 Switch Ajar Indicator	C4CD765	84-95 Door Assembly - RH
C4CD726a	85-87 Switch Ajar Indicator	C4CD765a	84-95 Door Assembly - LH
C4CD726b	88-89 Switch Ajar Indicator	C4CD765b	84-95 Door Assembly Used - LH or RH
C4CD727	84-88 Bumper	C4CD765c	84-95 Panel, Outer RH Skin
C4CD728	84-95 Bracket Power Lock Wiring Harn.	C4CD765d	84-95 Panel, Outer LH Skin
C4CD729	85-89 Clip Front S/D O/S Handle Rod	C4CD766	84-85 Motor, Window Lift
C4CD730	84-95 Rod Side Lock R/Cont. RH	C4CD766a	84-85 Rack, Window Reg. Flex
C4CD730a	84-95 Rod Side Lock R/Cont. LH	C4CD766b	84-95 Regulator Assembly RH
C4CD731	1984 Actuator Electric Lock	C4CD766c	84-95 Regulator Assembly LH
C4CD731a	85-89 Actuator Electric Lock	C4CD766d	84-95 Used Assy/Combo A-B/A-C
C4CD731b	84-96 Actuator Bracket	C4CD767	84-86 Spacer, Front Window Up Stop
C4CD732	84-95 Bracket Side Frt. Dr. Window Stop	C4CD768	84-95 Stop, Window Glass

C4CD733	84-95 Washer - Striker to Panel	C4CD769	84-95 Nut Window Stop
C4CD734	84-88 Striker Lock	C4CD770	84-95 Bushing Window Stop Wdo Glass
C4CD734a	1989 Striker Lock	C4CD771	84-87 Stud Window Glass
C4CD735	84-95 Washer	C4CD771a	88-89 Bolt Window Glass
C4CD736	84-95 Plate Lock Striker Tap	C4CD772	84-95 Window Glass - RH
C4CD737	84-95 Locator Guide Pin - RH	C4CD772a	84-95 Window Glass - LH
C4CD737a	84-95 Locator Guide Pin - LH	C4CD773	84-95 Bracket I/P Wiring Harness Lead

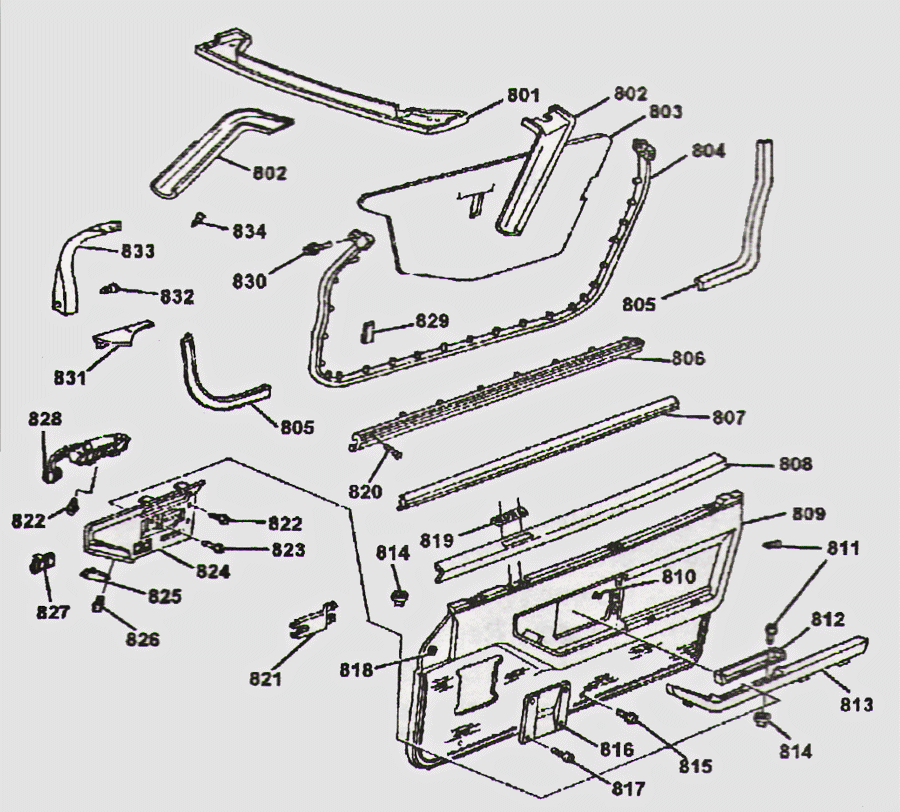

1984 - 1996 Door Trim and Sealing

JC PT #	Description	JC PT #	Description
C4DTS801	84-85 Molding Windshield Upper	C4DTS816	84-89 Grille, Radio Speaker
C4DTS801a	86-88 Molding Windshield Upper	C4DTS817	84-89 Screw Pan HD C/R Tap
C4DTS801b	89-96 Molding Windshield Upper	C4DTS818	84-88 Bezel Size Window Defr Duct
C4DTS802	84-89 Molding Windshield Side - RH	C4DTS819	84-89 Bezel Size Window Outlet RH
C4DTS802a	84-89 Molding Windshield Side - LH	C4DTS819a	84-89 Bezel Size Window Outlet LH
C4DTS803	84-88 Insulator Front Side	C4DTS820	84-89 Screw Pan Head C/R/Call
C4DTS803a	84-96 Insulator Inner Panel - RH	C4DTS821	84-89 Insert Side Panel
C4DTS803b	84-96 Insulator Inner Panel - LH	C4DTS822	84-89 Screw Oval Head Countersunk
C4DTS804	84-89 Weatherstrip LH	C4DTS823	84-89 Bolt/Screw Hex W/Fl Wa Tap
C4DTS804a	84-89 Weatherstrip RH	C4DTS824	84-85 Plate Accessory RH W/AU3
C4DTS805	84-96 Seal	C4DTS824a	86-89 Plate Accessory RH W/AU3
C4DTS806	84-96 Sealing Strip Window Outer - RH	C4DTS824b	84-85 Plate Accessory RH ExcAU3 Disc
C4DTS806a	84-96 Sealing Strip Window Outer - LH	C4DTS824c	86-87 Plate Accessory RH ExcAU3 Disc
C4DTS807	84-89 Seal, Glass Inner - RH	C4DTS824d	84-85 Plate Accessory LH W/AU3
C4DTS807a	84-89 Seal, Glass Inner - LH	C4DTS824e	84-87 Plate Accessory LH W/AU3
C4DTS808	84-89 Cover Molding Panel Upper - RH Coup.	C4DTS824f	84-87 Plate Accessory RH ExcAU3 Disc
C4DTS808a	84-89 Cover Assembly - RH Conv.	C4DTS825	84-89 Switch Windshield Washer & Assy
C4DTS808b	84-89 Cover Molding Panel Upper - LH Coup.	C4DTS826	84-89 Screw HWH Tap
C4DTS808c	84-89 Cover Assembly - LH Conv.	C4DTS827	84-85 Switch Power Lock RH
C4DTS809	84-87 Panel Door RH	C4DTS827a	84-89 Switch Power Lock LH

C4DTS809a	88- 89 Panel Door RH	C4DTS827b	86-89 Switch Power Lock
C4DTS809b	84-87 Panel Door LH	C4DTS827c	84-89 Switch Side Window
C4DTS809c	88-89 Panel Door LH	C4DTS828	84-85 Lamp Dim & Rdg In Door RH
C4DTS810	88-89 Nut-U Shape	C4DTS828a	86-88 Lamp Assy Mt Map In Door RH
C4DTS811	88-89 Screw, RD Large WA HD C/R	C4DTS828b	84-85 Lamp Dim & Rdg In Door LH
C4DTS812	88-89 Filler Armrest RH	C4DTS828c	86-88 Lamp Assy Mt Map In Door LH
C4DTS812a	88-89 Filler Armrest LH	C4DTS829	86-89 Seal Polyurethene
C4DTS813	84-87 Armrest Assembly RH	C4DTS830	84-89 Bolt, Hex W/Flat WA Tap
C4DTS813a	84-87 Armrest Assembly LH	C4DTS831	84-89 Molding Windshield Lwr Cor RH
C4DTS813b	88-89 Armrest Assembly RH Black	C4DTS831a	84-89 Molding Windshield Lwr Cor LH
C4DTS813c	88-89 Armrest Assembly LH Black	C4DTS832	84-89 Retainer, Push In
C4DTS814	84-96 Nut Anchor Thread Size 8-18	C4DTS833	84-89 Windlace Opening RH
C4DTS815	84-89 Screw, Oval Head	C4DTS833a	84-89 Windlace Opening LH
		C4DTS834	84-89 Screw Pan Head C/R Tap

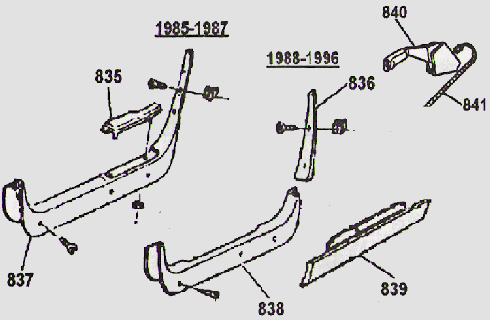

1984 - 1996 Sill Plates and Rocker Panels - E-Brake Handle

JC PT # Description C4SPRP835 85-87 Trim Plate Pad LH C4SPRP835a 85-87 Trim Plate Pad RH C4SPRP836 88-96 Rear Sill Trim Plate LH C4SPRP836a 88-96 Rear Sill Trim Plate RH C4SPRP837 85-87 Sill Trim Plate LH C4SPRP837a 85-87 Sill Trim Plate RH C4SPRP838 88-96 Sill Trim Plate LH C4SPRP838a 88-96 Sill Trim Plate RH C4SPRP839 84-96 Rocker Panel LH C4SPRP839a 84-96 Rocker Panel RH C4SPRP840 84-87 Emergency Break Handle C4SPRP840a 88-96 Emergency Break Handle C4SPRP841 84-96 Emergency Break Cable

JC PT # Description C4WR774 84-86 Window Regulator LH Original C4WR774a 84-86 Window Regulator RH Original C4WR775 84-86 Power Window Regulator Motor C4WR776 84-86 Window Regulator Flex Rack C4WR766b 86-96 Window Regulator RH Upgrade C4WR766c 86-96 Window Regulator LH Upgrade

1984 - 1993 Mirrors and Rear View - Controls

JC PT # Description C4MRVC301 84-88 Mirror, RH C4MRVC301a 1988 Mirror, RH C4MRVC301b 84-87 Mirror, RH C4MRVC301c 1987 Mirror, RH (W/Defi) C4MRVC301d 88-93 Mirror, RH C4MRVC301e 84-88 Mirror, LH C4MRVC301f 1986 Mirror, LH C4MRVC301g 1988 Mirror, LH C4MRVC301h 84-87 Mirror, LH C4MRVC301i 1987 Mirror, LH (W/Defi) C4MRVC301j 88-93 Mirror, LH C4MRVC302 84-93 Insulator, RH C4MRVC302a 84-93 Insulator, LH C4MRVC303 84-93 Retainer, Side Door Wire RH C4MRVC303a 84-93 Retainer, Side Door Wire LH C4MRVC304 84-93 Nut, Hex W/Washer (M6x1) C4MRVC305 ????? C4MRVC306 84-93 Bracket, I/P Wiring Harn Dr Ld C4MRVC307 84-89 Retainer, R/Cont Spring Type C4MRVC307a 1984 Retainer, R/Cont Round Type C4MRVC308 84-89 Bezel C4MRVC309 84-86 Control, Rem C4MRVC309a 84-89 Control, Rem C4MRVC310 84-89 Harness C4MRVC310a 90-93 Harness, Front Floor Console C4MRVC311 84-89 Switch, R/Cont Sel C4MRVC312 84-89 Screw, Ov Hd C/R Tap C4MRVC313 86-93 Deflector, RH C4MRVC313a 86-93 Deflector, LH C4MRVC314 84-93 Rivet, Pop

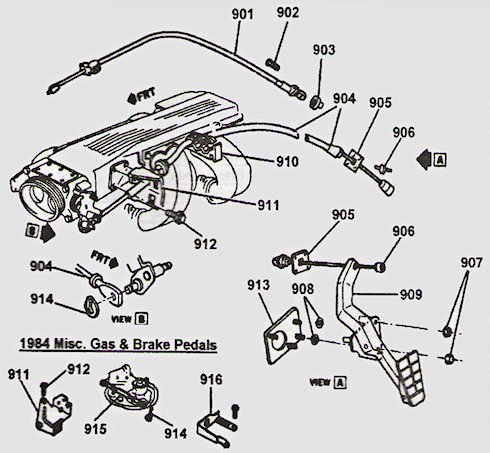

Gas Pedal And Cables

JC PT # Description C4GPC901 1984 Cable, Transmission Throttle Valve C4GPC901a 85-88 Cable, Transmission Throttle Valve C4GPC901b 89-91 Cable, Transmission Throttle Valve C4GPC901c 1985 Cable, Overdrive Throttle Valve C4GPC902 84-96 Bolt, Hex w/Con Washer C4GPC903 84-81 Seal, Transmission Throttle Valve C4GPC904 1984 Cable, Accelerator Control C4GPC904a 85-88 Cable, Accelerator Control C4GPC904b 89-91 Cable, Accelerator Control C4GPC905 84-91 Plate Accelerator Control Cable C4GPC906 84-91 Rivet C4GPC907 84-91 Nut, HFH (M6x1) C4GPC908 84-91 Washer, Accelerator Pedal Lever Support C4GPC909 84-88 Pedal, Accelerator C4GPC909a 89-91 Pedal, Accelerator C4GPC910 85-91 Clip, Accelerator Cable C4GPC911 1984 Bracket Accelerator Control Cable C4GPC911a 85-88 Bracket Accelerator Control Cable C4GPC911b 89-91 Bracket Accelerator Control Cable C4GPC912 84-91 Bolt, Hex Flange Head C4GPC913 84-91 Plate, Steering Column Lwr Support Stud C4GPC914 84-91 Retainer, Cable C4GPC915 1984 Rod Kit, Throttle W/Bearing C4GPC916 1984 Bracket, Trans Throttle Valve Cont Cable

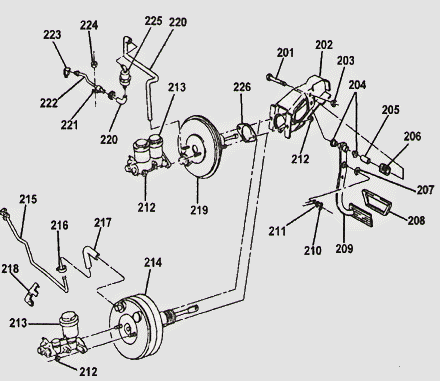

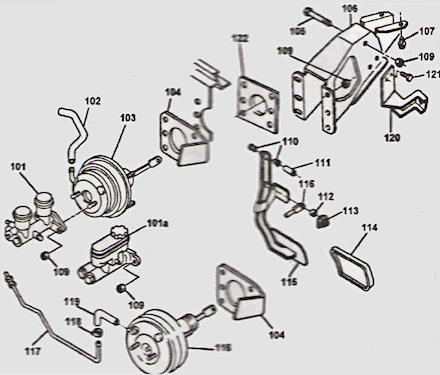

1984-1989 Power Brake Booster - Master Cylinder	1990-1996 Power Brake Booster - Master Cylinder
JC PT # Description C4PBBMC201 84-85 Bolt, Pivot C4PBBMC201a 86-89 Bolt, Break Pedal Pivot C4PBBMC202 84-89 Bracket, Pivot C4PBBMC203 84-89 Nut, Brake Pedal Pivot C4PBBMC204 84-89 Bushing, Brake Pedal Pivot C4PBBMC205 84-89 Spacer, Brake Pedal Pivot C4PBBMC206 1984 Spring, Discontinued C4PBBMC207 84-89 Washer, Spring C4PBBMC208 84-89 Cover, Brake Pedal Automatic C4PBBMC208a 84-89 Cover, Brake Pedal Manual C4PBBMC209 84-89 Pedal, Brake Automatic C4PBBMC209a 84-89 Pedal, Brake Manual C4PBBMC209b 84-89 Bracket, Stop Lamp Switch C4PBBMC210 84-89 Retainer, Type B Spring C4PBBMC211 84-89 Washer, Flat C4PBBMC212 84-89 Nut, Hex Torq Prev. (M8x1.25) C4PBBMC213 1984 Cylinder, Master C4PBBMC213a 1985 Cylinder, Master C4PBBMC213b 86-87 Cylinder, Master C4PBBMC213c 1988 Cylinder, Master C4PBBMC213d 1989 Cylinder, Master C4PBBMC214 1984 Booster, Power C4PBBMC214a 85-89 Booster, Power C4PBBMC215 84-89 Booster, Power C4PBBMC216 84-89 Pipe, Booster Vacuum C4PBBMC217 84-89 Hose, Power Booster C4PBBMC218 84-89 Bracket C4PBBMC219 1984 Booster, Vacuum C4PBBMC219a 85-88 Booster, Vacuum C4PBBMC219b 1989 Booster, Vacuum C4PBBMC220 84-89 Hose, Vacuum C4PBBMC221 84-89 Clamp, Worm Type C4PBBMC222 1984 Tube, Booster/Discontinued C4PBBMC223 1984 Fitting, Booster/Discontinued C4PBBMC224 1984 Nut, Hex Flange C4PBBMC225 1984 Filter, Vacuum Booster Hose C4PBBMC226 1984 Gasket, Booster/Discontinued C4PBBMC226a 85-89 Seal, Booster	JC PT # Description     C4PBBMC101 90-91 Cylinder, Brake Master C4PBBMC101a 92-93 Cylinder, Brake Master C4PBBMC102 90-93 Hose, Vacuum Brake System LT5 C4PBBMC103 90-91 Booster, Power (LT5) C4PBBMC103a 92-93 Booster, Power (LT5) C4PBBMC104 90-91 Bracket, ECM (LT5) C4PBBMC104a 90-93 Bracket, ECM C4PBBMC105 90-93 Bolt, HFH (M10x1.5x65) C4PBBMC106 90-91 Bracket, Brake Pedal Pivot LT5 C4PBBMC106a 90-91 Bracket, Brake Pedal Pivot C4PBBMC106b 92-93 Bracket, Brake Pedal Pivot C4PBBMC107 90-93 Bolt, Flange Head C4PBBMC108 90-93 Nut, Hex Prvg. Torq. C4PBBMC109 90-93 Nut, Power Booster (LT5) C4PBBMC109a 90-93 Nut, Power Booster C4PBBMC110 90-93 Bushing, Brake Pedal Pivot C4PBBMC111 90-93 Spacer, Brake Pedal Pivot C4PBBMC112 90-93 Washer, Brake Pedal Push Rod C4PBBMC113 90-93 Retainer, Brake Pedal Push Rod C4PBBMC114 90-93 Cover, Brake Pedal/Manual 6spd. C4PBBMC114a 90-91 Cover, Brake Pedal/Auto 4spd. C4PBBMC114b 92-93 Cover, Brake Pedal/Auto 4spd. C4PBBMC115 90-91 Pedal, Brake/Manual 6spd. C4PBBMC115a 90-91 Pedal, Brake/Auto 4spd. C4PBBMC115b 92-93 Pedal, Brake/Manual 6spd. C4PBBMC115c 92-93 Pedal, Brake/Auto 4spd. C4PBBMC116 90-91 Booster, Power C4PBBMC116a 92-93 Booster, Power C4PBBMC117 90-91 Pipe, Power Booster Valve C4PBBMC118 90-91 Clamp, Worm Type C4PBBMC119 90-91 Hose, Power Booster Vacuum C4PBBMC119a 1992 Hose, Power Booster Vacuum C4PBBMC119b 1993 Hose, Power Booster Vacuum C4PBBMC120 90-92 Bracket, Stop Lamp Switch C4PBBMC120a 1993 Bracket, Stop Lamp Switch C4PBBMC121 92-93 Screw, Stop Lamp Switch Bracket C4PBBMC122 92-93 Seal, Power Brake Booster

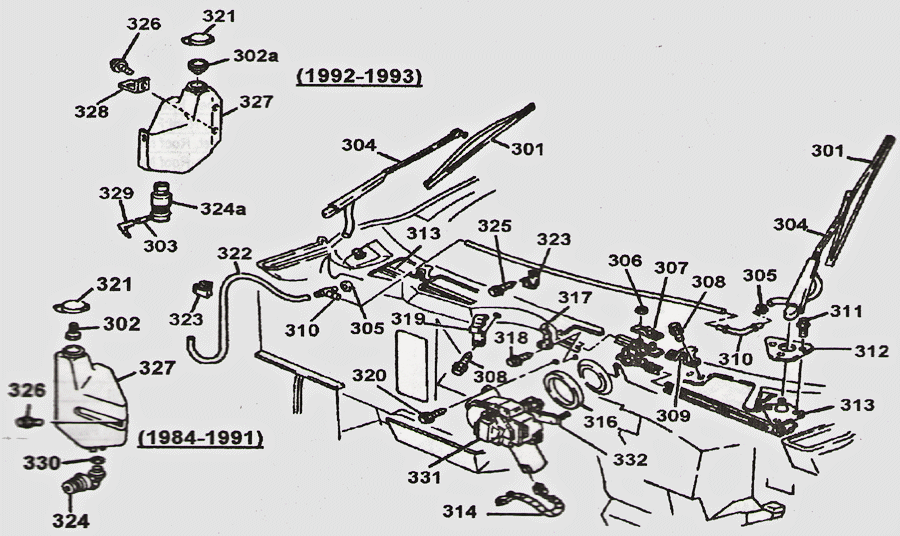

1984-1993 Windshield Wiper System

JC PT #	Description	JC PT #	Description
C4WWS301a	92-93 Windshield Wiper Blade/18 inch	C4WWS315	84-93 Motor
C4WWS301b	84-93 Windshield Wiper Insert/20 inch	C4WWS316	84-93 Gasket, Motor
C4WWS301c	92-93 Windshield Wiper Insert/18 inch	C4WWS317	84-93 Stop, Windshield Wiper Arm
C4WWS302	84-91 Filer, Pump W/Nut	C4WWS318	84-93 Bolt, Hex W/Con Wiper
C4WWS302a	92-93 Filter, Solvent Container	C4WWS319	84-93 Stop, Windshield Wiper Blade
C4WWS303	92-93 Joint, Solvent Hose	C4WWS320	84-93 Bolt, Motor
C4WWS304	84-93 Arm, Windshield Wiper RH	C4WWS321	84-93 Cap, Washer Solvent Container
C4WWS304a	84-93 Arm, Windshield Wiper LH	C4WWS322	84-93 Hose, 5/32x25ft. Washer
C4WWS305	84-93 Nut, Push On	C4WWS323	84-93 Clip, Open Loop
C4WWS306	84-93 Nut, Socket to Motor	C4WWS324	84-91 Pump, Winshield Washer
C4WWS307	84-93 Socket, Transmission Link	C4WWS324a	92-93 Pump, Winshield Washer
C4WWS308	84-93 Screw, Hex W/Wa M4.2x1 41x16	C4WWS325	84-93 Screw, Pan Head Torx W Fl. Wa.
C4WWS309	84-93 Ramp, Arm Park	C4WWS326	84-93 Bolt, Hex W/Con Washer
C4WWS310	84-93 Connector, Nozzle Hose/Elbow	C4WWS327	84-91 Container, Solvent
C4WWS310a	84-93 Connector, Nozzle Hose/Tee	C4WWS327a	92-93 Container, Solvent
C4WWS311	84-93 Bolt, Transmission Reinforcement	C4WWS328	92-93 Bracket, Wiring Harness Clip
C4WWS312	84-93 Reinforcement, Transmission	C4WWS329	92-93 Elbow, Solvent Hose
C4WWS313	84-93 Transmission Wiper RH	C4WWS330	84-91 Gasket Pump
C4WWS313a	84-93 Transmission Wiper LH	C4WWS331	84-93 Cover, Windshield Wiper Motor
C4WWS314	84-93 Harness	C4WWS332	84-93 Crank Arm Wiper Motor
C4WWS314a	84-87 Harness, Motor & Pump Wiring

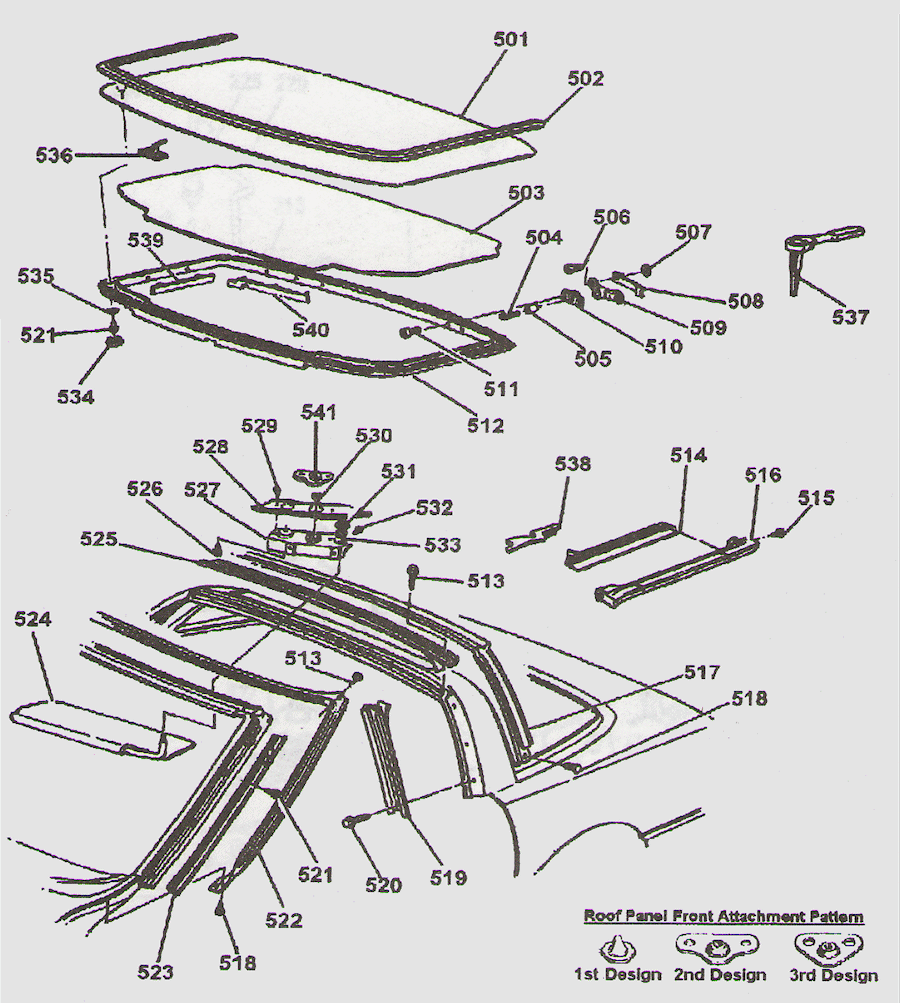

1984-1996 Glass Roof and Convertible Tops and Related Parts

JC PT #	Description	JC PT #	Description
C4GRCT501	84-86 Roof, Remanuf.1st Design/Blue	C4GRCT523	84-96 Retainer, Weatherstrip RH
C4GRCT501a	84-86 Roof, Remanuf.1st Design/Bronze	C4GRCT523a	84-96 Retainer, Weatherstrip LH
C4GRCT501b	86-88 Roof, Remanuf.2nd Design/Blue	C4GRCT524	84-96 Sunshade, RN
C4GRCT501c	86-88 Roof, Remanuf.2nd Design/Bronze	C4GRCT524a	84-96 Sunshade, LN
C4GRCT501d	89-96 Roof, Remanuf.3rd Design/Blue	C4GRCT525	84-96 Retainer, Rear Weatherstrip
C4GRCT501e	89-96 Roof, Remanuf.3rd Design/Bronze	C4GRCT526	84-85 Screw, Roof Front Mounting
C4GRCT502	84-85 Molding, Roof Panel	C4GRCT527	84-86 Bracket, Roof Mtg. 1st. Design RH
C4GRCT503	86-96 Panel, Roof Trim	C4GRCT527a	84-86 Bracket, Roof Mtg. 1st. Design LH
C4GRCT503a	84-96 Panel, Roof Trim	C4GRCT527b	86-88 Bracket, Roof Mtg. 2nd. Design RH
C4GRCT504	84-96 Screw, Rear Roof Locator Brkt	C4GRCT527c	86-88 Bracket, Roof Mtg. 2nd. Design LH
C4GRCT505	84-96 Retainer, Roof Lift Off Panel	C4GRCT527d	89-96 Bracket, Roof Mtg. 3rd. Design RH
C4GRCT506	84-96 Bolt, HFH (M8x1.25x20)	C4GRCT527e	89-96 Bracket, Roof Mtg. 3rd. Design LH
C4GRCT507	84-96 Washer, Roof Pnl Rear Loc. Brkt	C4GRCT528	84-86 Cover, Front Latch 1st. Design RH
C4GRCT508	84-96 Shim, Roof Panel Rear Locator	C4GRCT528a	84-86 Cover, Front Latch 1st. Design LH
C4GRCT509	84-96 Bracket, Rear Roof Locator RH	C4GRCT528b	86-88 Cover, Front Latch 2nd. Design RH
C4GRCT509a	84-96 Bracket, Rear Roof Locator LH	C4GRCT528c	86-88 Cover, Front Latch 2nd. Design LH
C4GRCT510	84-96 Locator Rear Roof RH	C4GRCT528d	89-96 Cover, Front Latch 3rd. Design RH
C4GRCT510a	84-96 Locator Rear Roof LH	C4GRCT528e	89-96 Cover, Front Latch 3rd. Design LH
C4GRCT511	84-96 Screw, Pan Head	C4GRCT529	84-96 Screw, RD WA Head
C4GRCT512	84-96 Frame, Roof Panel, Part of 501	C4GRCT530	84-86 Pin, Front Hold Down
C4GRCT513	84-96 Screw, Pan Head	C4GRCT531	84-96 Retainer, Sunshade
C4GRCT514	84-96 Retainer, Roof Pnl W/strip RH	C4GRCT532	84-96 Bolt, Front Hold Down Plate
C4GRCT514a	84-96 Retainer, Roof Pnl W/strip LH	C4GRCT533	84-96 Spring, Sunshade Support
C4GRCT515	84-96 Screw, RD Wa Head	C4GRCT534	84-96 Plug, Rubber (1 inch)
C4GRCT516	84-96 Weatherstrip, Roof Panel RH	C4GRCT535	84-96 Washer, Flat
C4GRCT516a	84-96 Weatherstrip, Roof Panel LH	C4GRCT536	84-85 Tape, Trim Fastener
C4GRCT517	84-96 Weatherstrip, Roof Panel, Rear	C4GRCT537	84-85 Wrench, Roof Panel
C4GRCT518	84-96 Retainer Front, Rear W/strip	C4GRCT538	84-96 Protector, Front Side Upper
C4GRCT519	84-96 Retainer, Rear Weatherstrip RH	C4GRCT538a	84-96 Protector, Side Weatherstrip LH
C4GRCT519a	84-96 Retainer, Rear Weatherstrip RH	C4GRCT539	84-96 Pad, Roof Panel Frame Side
C4GRCT520	84-96 Screw, RD WA	C4GRCT540	84-96 Pad, Roof Panel Frame Rear RH
C4GRCT521	84-96 Screw, RD WA	C4GRCT540a	84-96 Insulator Lift-Off Panel Frame
C4GRCT522	84-96 Weatherstrip, Roof Panel, Front	C4GRCT541	84-96 Plate, Front Hold Down

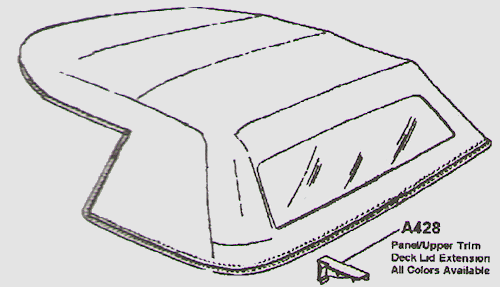

1986-1996 Convertible Replacement Tops

		Replacement Vinyl Grade Top
		C4CRT542	Replacement Vinyl Grade Top, (Black, White, Tan- Please Specify Color)
		C4CRT543	Premium Grade Tops, (Black, Blue, Beige, Ruby- Please Specify Color)
		C4CRT544	Stay Fast (Black, Beige, White- Please Specify Color)
		C4CRT545	Hard Glass Window Top (Black, Beige, White- Please Specify Color)
		Factory Original Tops
		C4CRT546	Black Hartz Top
		C4CRT547	Cloth Top (Beige, Dark Blue, Ruby- Please Specify Color)
		C4CRT548	Vinyl Top (White, Arctic White, Saddle- Please Specify Color)

1989-1996 Convertible Top Deck Lid Assembly and Related Parts

JC PT #	Description	JC PT #	Description
C4CTDL801	89-91 Bezel, Rear Latch	C4CTDL822	89-91 Actuator Stow Comp Lid Latch Rel.
C4CTDL802	89-91 Latch Rear	C4CTDL822a	89-91 Spacer, Solenoid
C4CTDL803	89-91 Nut, Hex (M6x1)	C4CTDL823	89-91 Rivet, Latch Actuator Mount Plate
C4CTDL804	89-91 Screw, HWH Tap (M4.2x11.41x16)	C4CTDL824	89-91 Rivet, Latch Actuator Mount
C4CTDL804a	89-91 Washer, Flat	C4CTDL825	89-91 Nut, Hex W/Con Washer
C4CTDL805	89-91 Cable, Rear Latch Release	C4CTDL826	89-91 Bracket, R/Floor Panel Upper RH
C4CTDL806	89-91 Screw, HWH (4.2x1x1.41x20)	C4CTDL826a	89-91 Bracket, R/Floor Panel Upper LH
C4CTDL807	89-91 Rivit, Compt. Lid Latch Release Cable	C4CTDL827	89-91 Bolt, (8x1.25x20)
C4CTDL808	89-91Screw, Pan Head Torx Tap	C4CTDL828	89-91 Bracket, R/Floor Panel Upper RH
C4CTDL809	89-91 Relay, Rear Latch Release Actuator	C4CTDL828a	89-91 Bracket, R/Floor Panel Upper LH
C4CTDL810	89-91 Cable, Stow Compt. Lid Latch Release	C4CTDL829	89-91 Latch, Stow Compt. Lid RH
C4CTDL811	89-91 Shim, Stow Compt. Lid	C4CTDL829a	89-91 Latch, Stow Compt. Lid LH
C4CTDL812	89-91 Striker, Stow Compt. Lid Latch RH	C4CTDL830	89-91 Bolt, Latch Actuator
C4CTDL812a	89-91 Striker, Stow Compt. Lid Latch LH	C4CTDL831	89-91 Screw, HWH (4.2x1x1.41x20)
C4CTDL813	89-91 Nut, (8x1.25x7.8)	C4CTDL832	89-91 Weather, Stow Compt. Lid
C4CTDL814	89-91 Rod, Stow Compt. Lid Hinge	C4CTDL833	89-91 Lid, Stow Compartment
C4CTDL815	89-91 Guide, Stow Compt. Lid Hinge	C4CTDL834	89-91 Stop, Stow Compt. Lid Hinge
C4CTDL816	89-91 Retainer, Stow Compt. Hinge Guide	C4CTDL835	89-91 Strap, Adjuster Retainer
C4CTDL817	89-91 Strap, Adjustor Tie	C4CTDL836	89-91 Lever, Latch Release RH
C4CTDL818	89-91 Insulator, Stow Compt. Lid Hinge Rod	C4CTDL836a	89-91 Lever, Latch Release LH
C4CTDL819	89-91 Hinge, Stow Compt. Lid RH	C4CTDL837	89-91 Bracket, Latch Rel. Actuator Lever RH
C4CTDL819a	89-91 Hinge, Stow Compt. Lid LH	C4CTDL837a	89-91 Bracket, Latch Rel. Actuator Lever LH
C4CTDL820	89-91 Bolt, HFH (8x1.25x20)	C4CTDL838	89-91 Spacer, Solenoid Assy
C4CTDL821	89-91 Screw, HWH Tap (M4.2x1.41x16)	C4CTDL839	89-91 Retainer, Latch Rel. Actuator Lever

1984-1996 Weather Strip and Glass

1984-1996 Weather Strip and Glass Coupe		1984-1996 Weather Strip and Glass Convertible
JC PT #	Description	JC PT #	Description
C4WSGCP601	84-96 Windshield	C4WSGCV701	87-96 Weatherstrip, Front Side Upper LH
C4WSGCP601a	90-96 Windshield	C4WSGCV701a	87-96 Weatherstrip, Front Side Upper RH
C4WSGCP602	84-96 Seal, Windshield	C4WSGCV701b	87-96 Weatherstrip, Removable Hard Top LH
C4WSGCP603	84-96 Weatherstrip RF Lift Off Panel Front	C4WSGCV701c	87-96 Weatherstrip, Removable Hard Top RH
C4WSGCP604	84-96 Weatherstrip RF Lift Off Panel Rear	C4WSGCV701d	87-96 Weatherstrip, Frt.Side Upper RR LH
C4WSGCP605	84-96 Retainer, RF Lift Off Panel Rear	C4WSGCV701e	87-96 Weatherstrip, Frt.Side Upper RR RH
C4WSGCP606	84-96 Retainer, Front Side Window/Lower	C4WSGCV702	87-96 Weatherstrip, Frt.Side Rear LH
C4WSGCP606a	84-96 Retainer, Front Side Window/Upper	C4WSGCV702a	87-96 Weatherstrip, Frt.Side Rear RH
C4WSGCP607	84-96 Retainer,Front Side Window RH	C4WSGCV702b	87-96 Weatherstrip, Removable Hard Top LH
C4WSGCP607a	84-96Retainer,Front Side Window LH	C4WSGCV702c	87-96 Weatherstrip, Removable Hard Top RH
C4WSGCP608	84-89 Weatherstrip Front Side LH	C4WSGCV703	87-88 Lid, F/Top Stow Compartment
C4WSGCP608a	84-89 Weatherstrip Front Side RH	C4WSGCV703a	89-92 Lid, F/Top Stow Compartment
C4WSGCP608b	90-92 Weatherstrip Front Side LH	C4WSGCV703b	1993 Lid, F/Top Stow Compartment
C4WSGCP608c	90-92 Weatherstrip Front Side RH	C4WSGCV704	87-96 Weatherstrip, Stow Compt. Lid
C4WSGCP608d	84-9Retainer Front Side	C4WSGCV705	87-96 Sealing Strip, Front Side Outer LH
C4WSGCP608e	90-91 Retainer Front Side	C4WSGCV705a	87-96 Sealing Strip, Front Side Outer RH
C4WSGCP609	84-96 Sealing Strip, Front Side/Outer LH	C4WSGCV706	90-96 Weatherstrip, Front Side LH
C4WSGCP609a	84-96 Sealing Strip, Front Side/Outer RH	C4WSGCV706a	87-89 Weatherstrip, Front Side LH
C4WSGCP610	84-90 Window, Front Side LH	C4WSGCV706b	87-89 Weatherstrip, Front Side RH
C4WSGCP610a	84-90 Window, Front Side RH	C4WSGCV706c	90-91 Weatherstrip, Front Side RH
C4WSGCP610b	91-96 Window, Front Side LH	C4WSGCV706d	92-96Weatherstrip, Front Side RH
C4WSGCP610c	91-96 Window, Front Side RH	C4WSGCV706e	90-91 Retainer,Front Side Weatherstrip
C4WSGCP611	84-96 Weatherstrip, Front Side Upper LH	C4WSGCV707	87-96 Seal, Windshield
C4WSGCP611a	84-96 Weatherstrip, Front Side Upper RH	C4WSGCV708	87-96 Weatherstrip, RT Lift Off Front
C4WSGCP612	84-91 Protector, Front Side Upper LH	C4WSGCV709	87-96 Weatherstrip, F/Top Rear
C4WSGCP612a	92-96 Protector, Front Side Upper LH	C4WSGCV710	87-90 Window, Front Side LH
C4WSGCP612b	84-96 Protector, Front Side Upper RH	C4WSGCV710a	91-96Window, Front Side LH
C4WSGCP613	84-96 Retainer, Front Side Upper LH	C4WSGCV710b	87-90 Window, Front Side RH
C4WSGCP613a	84-96 Retainer, Front Side Upper RH	C4WSGCV710c	91-96 Window, Front Side RH
C4WSGCP614	84-96 Retainer, RF Lift Off Panel RH	C4WSGCV711	84-96 Windshield/Exc. ZR1
C4WSGCP614a	84-85 Retainer, RF Lift Off Panel LH
C4WSGCP615	84-85 Glass, Rear Hatch w/Defrost		(A) Screw
C4WSGCP615a	84-85 Glass, Rear Hatch w/out Defrost		(B) Screw
C4WSGCP615b	86-90 Glass, Rear Hatch w/Defrost		(C) Screw
C4WSGCP615c	86-88 Glass, Rear Hatch w/out Defrost		(D) Retainer
C4WSGCP615d	91-96 Glass, Rear Compartment Lift		(E) Fastener
C4WSGCP615e	91-96 Glass, Rear Compartment Lift/ZR1		(F) Fastener
C4WSGCP615f	84-96 Bolt, Rear Hatch Upper Hinge
C4WSGCP615g	84-90 Washer, Rear Hatch Upper Hinge
C4WSGCP616	84-96 Weatherstrip, Rear Compartment
